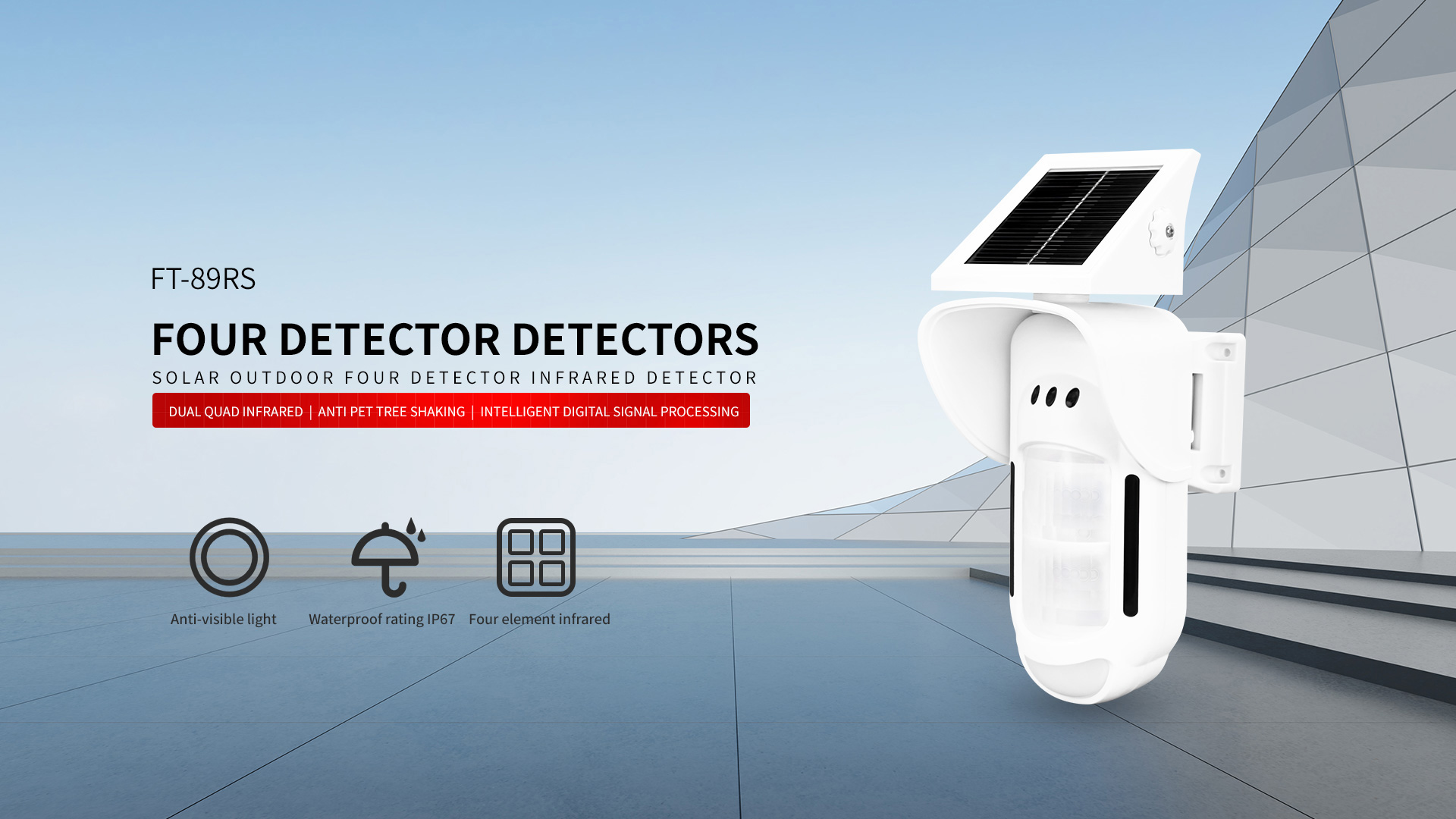

FT-89R outdoor solar microwave four detector infrared detector
Product features:

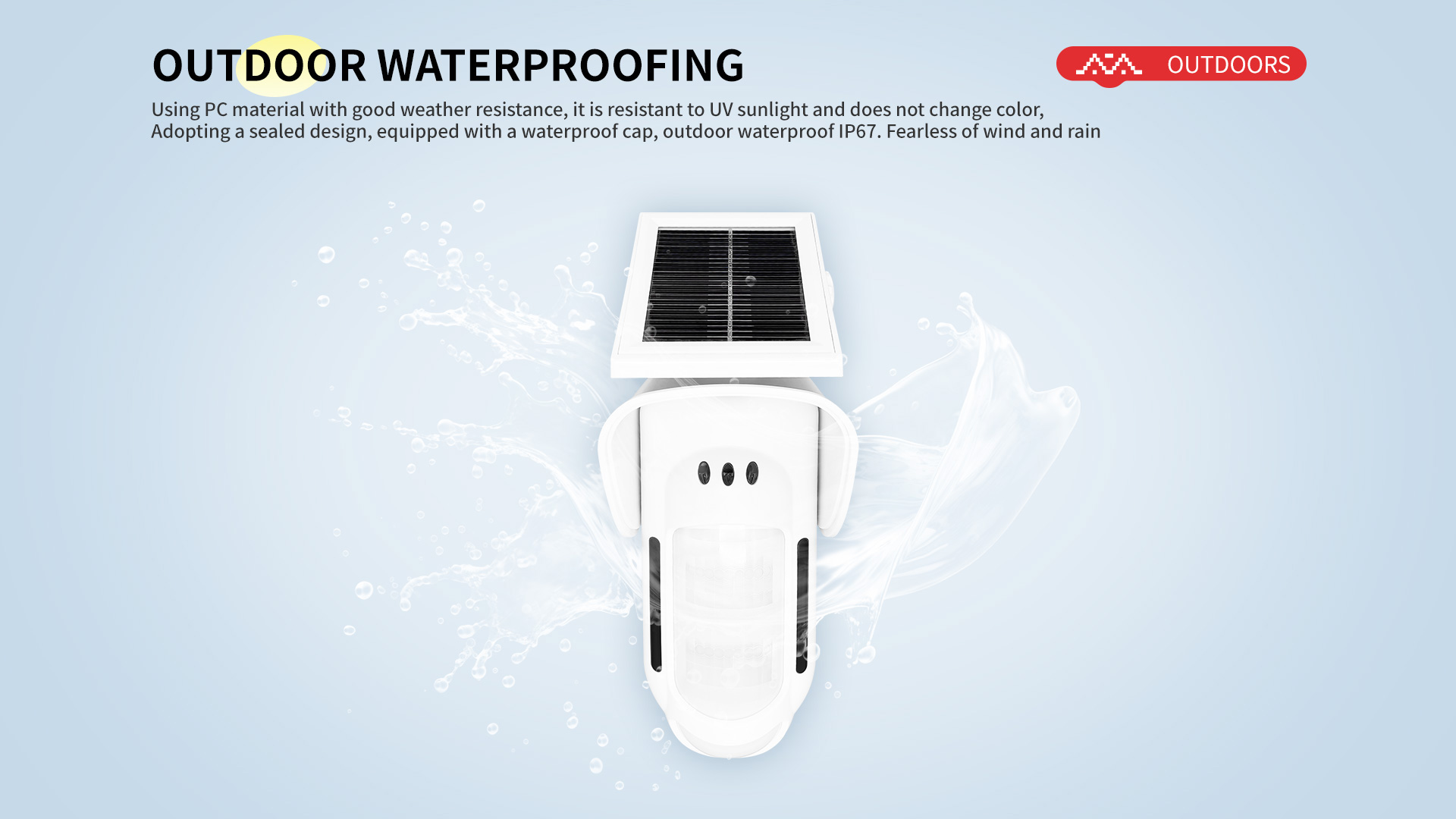

1.Can be used both indoors and outdoors, with a waterproof rating of IP67;

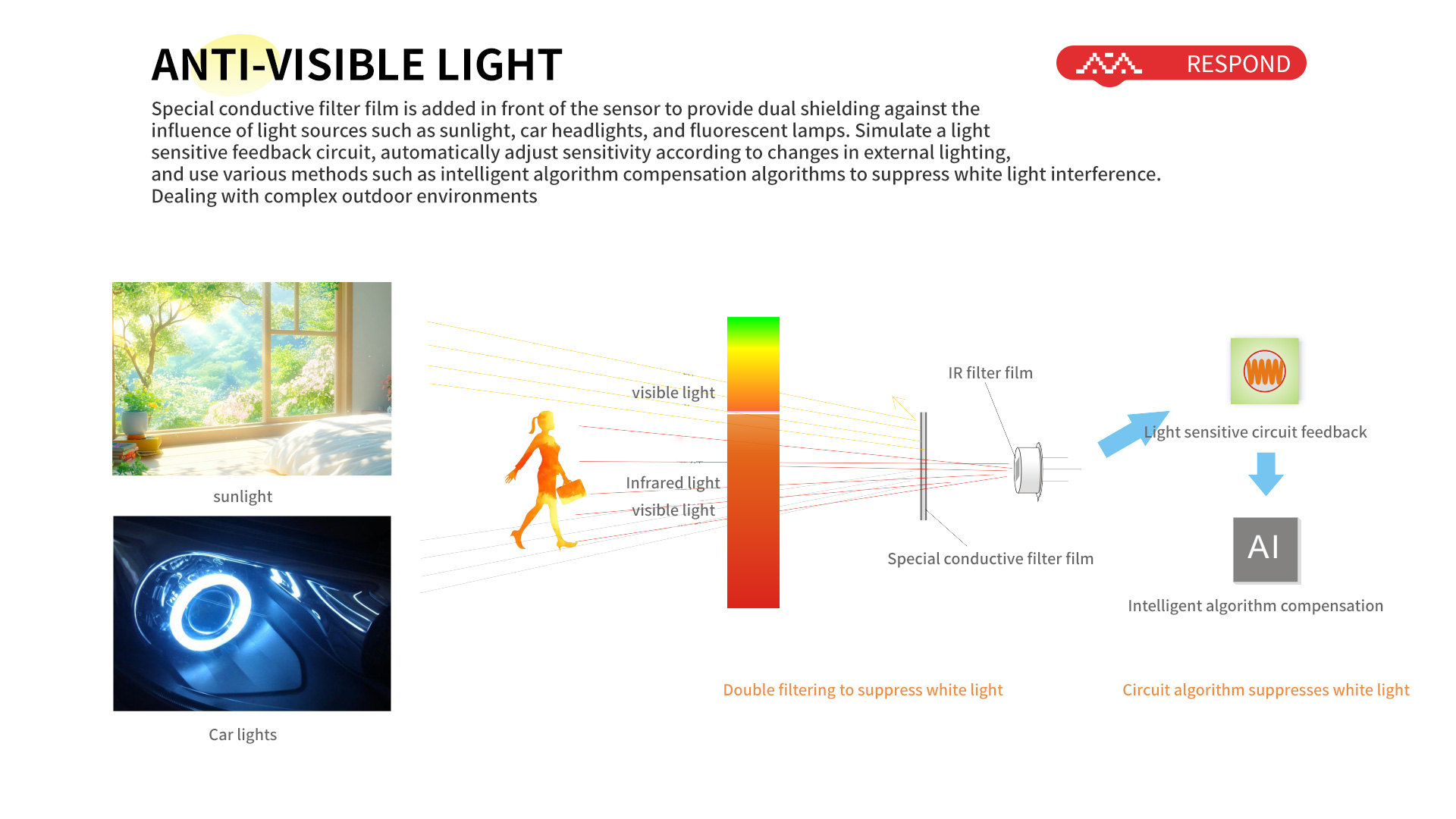

2.Rain and fog resistant, white light resistant, environment adaptive;

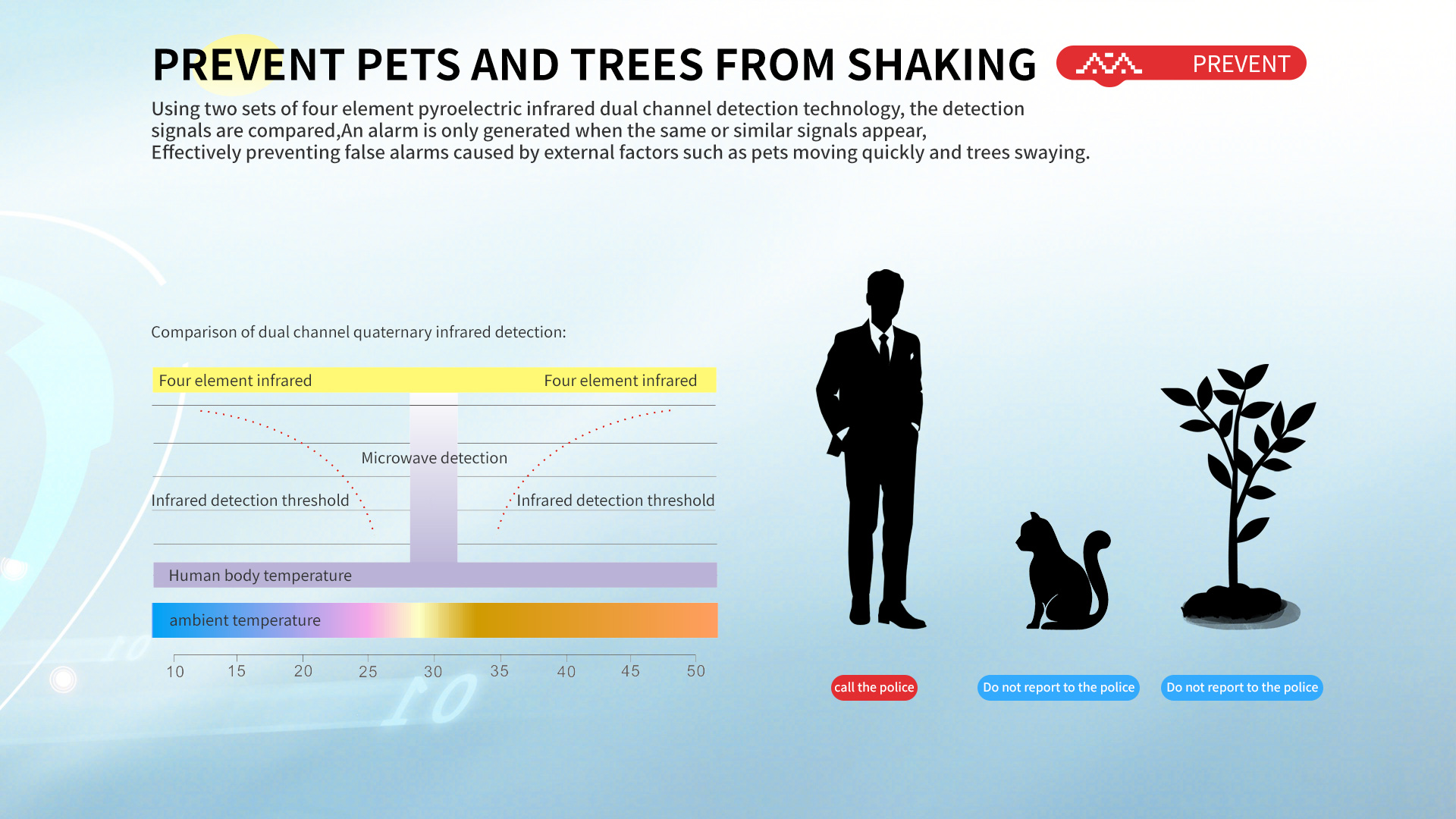

3.Intelligent algorithm for real object recognition, intelligent judgment, and anti pet recognition;
4.The solar range comes with a 7.4V/1000mAh lithium battery;

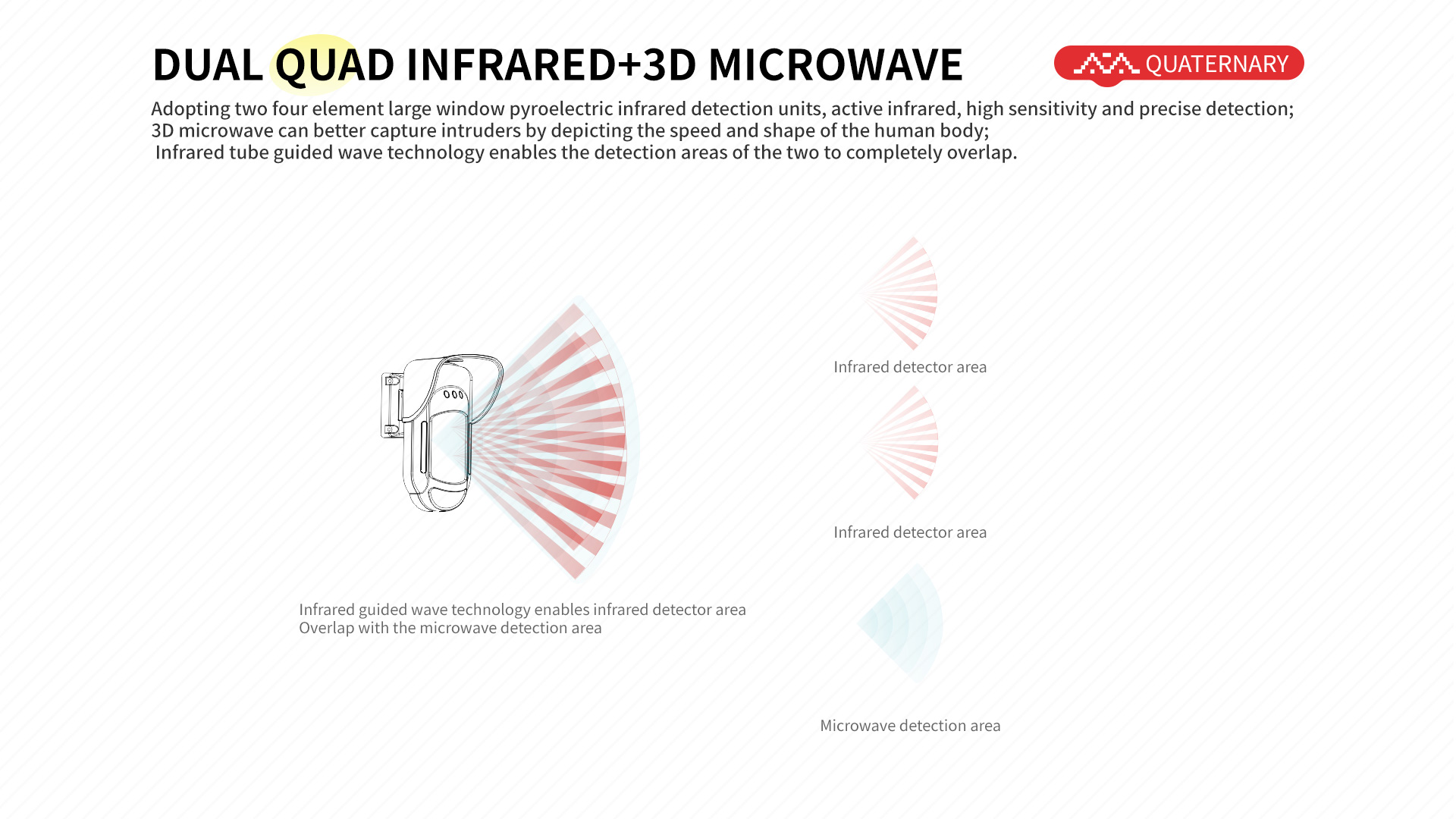

5.Two sets of four element passive infrared digital interaction technology and microwave shake recognition technology;
6.Automatic pulse regulation to cope with various complex outdoor environments;
7.Fine differential Fresnel lens for more precise detection;
8.Random dynamic time segmentation technique;
9.Large range rotation design, which can adjust the detection angle;
10.Bring down the window for a wider detection range and eliminate blind spots in detection;
11.Microwave anti-collision technology ensures that adjacent detectors do not interfere with each other;

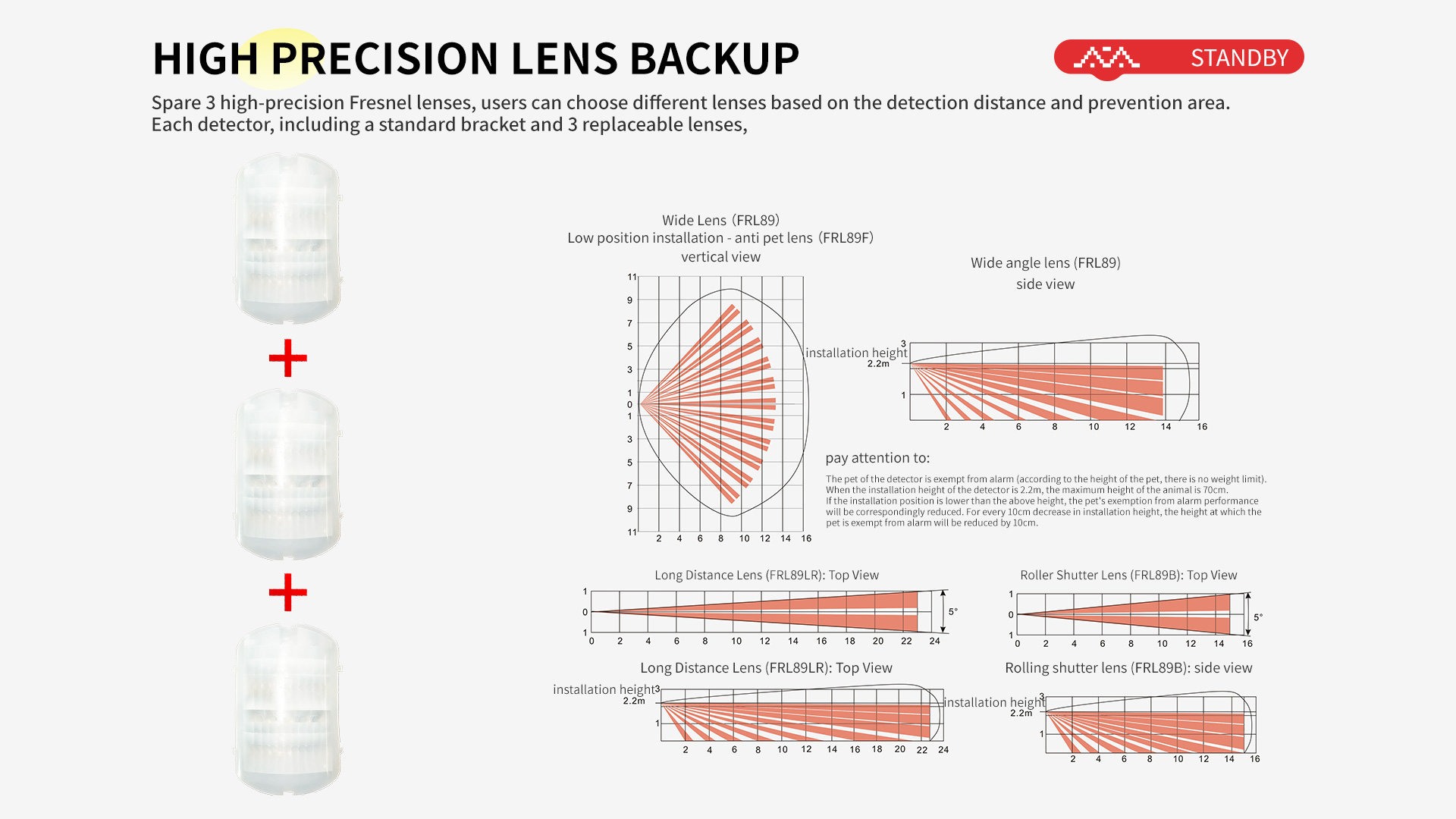

12.Spare Fresnel lens, selected according to detection requirements.
Specification parameters:
Product model: F-89rs indoor/outdoor triple detector
Detection method: Two sets of quaternary infrared+10.525GHz microwave
Wireless distance: 100 meters in open areas
Static current: 18mA
Alarm current: 50mA

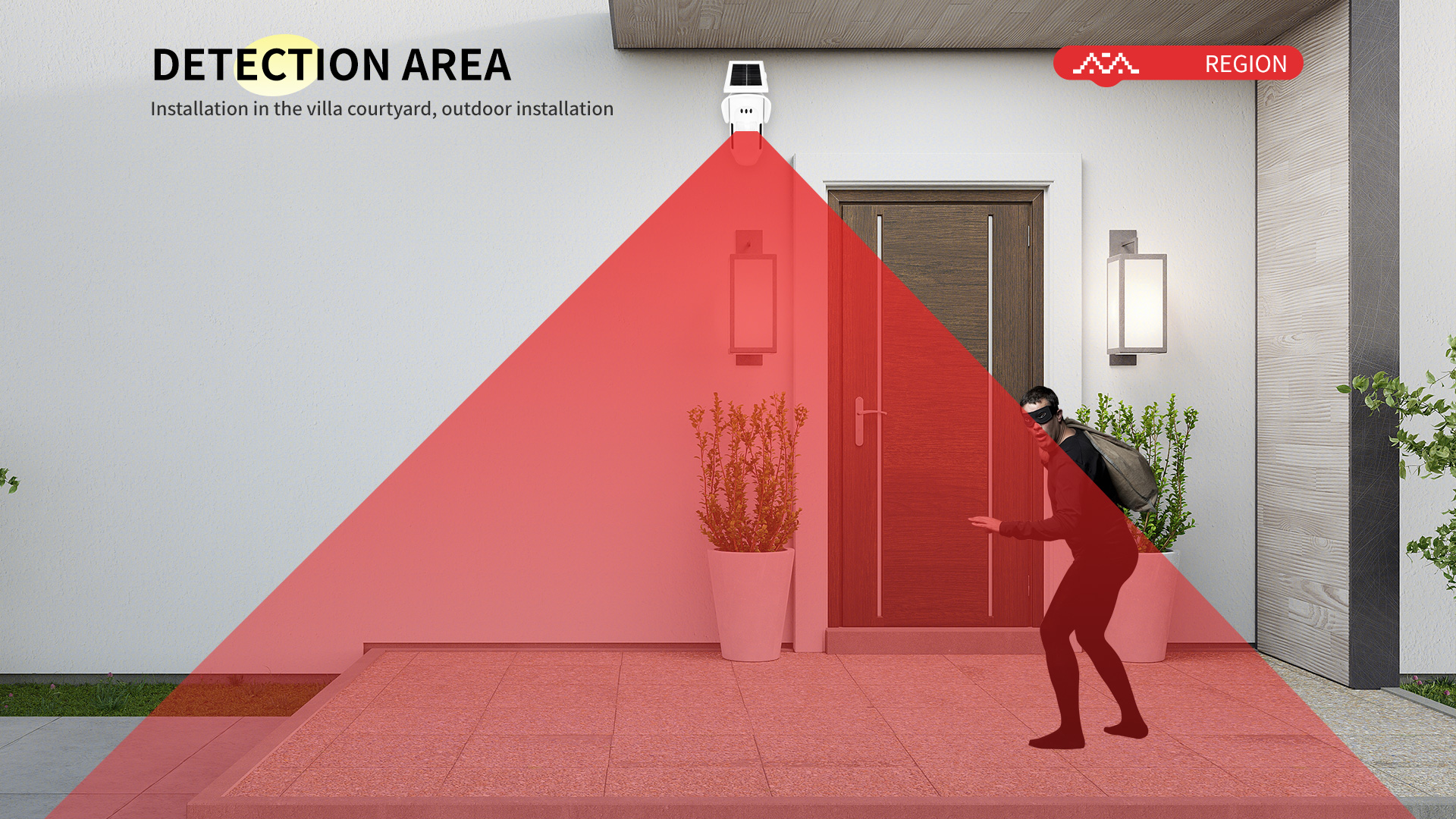

Detection distance: 9m/12m/18m

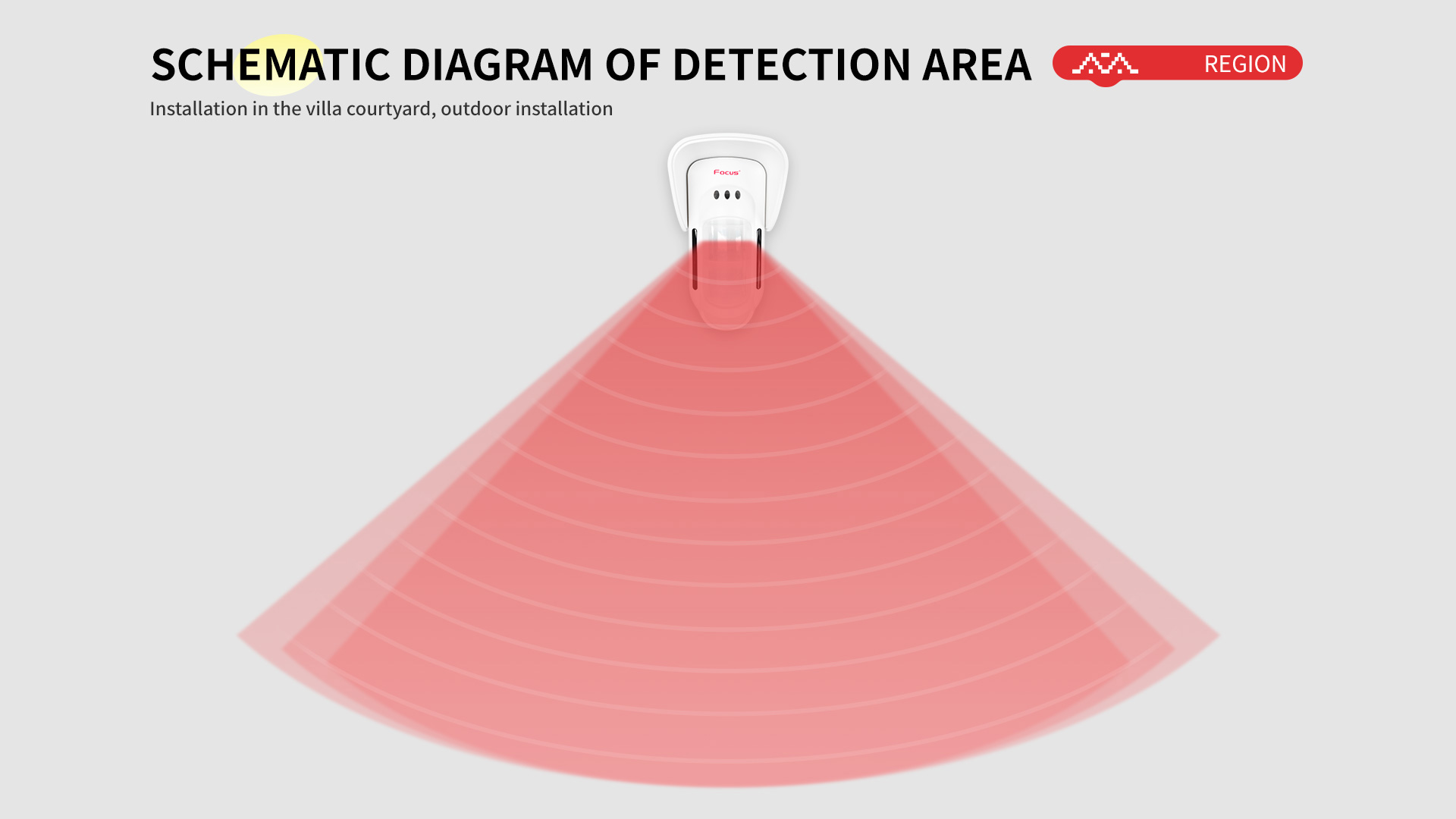

Detection angle: 30 °/90 °/120 °
Power input: 9-16VDC
Battery life: Powered by solar energy, comes with a 7.4V/1000mAh lithium battery
Installation height: 1.8-2.4m
Wireless frequency: 433MHz
Wireless encoding: ASK
Anti white light interference: 30000LUX
Anti electromagnetic interference:>30V/m (30MHz~1GHz)
Working temperature: -20 ℃ -+55 ℃
Installation bracket: rotatable angle: horizontal 90 °, vertical 60 °
Size: (L * W * H) 309 * 113 * 187mm (including bracket)
