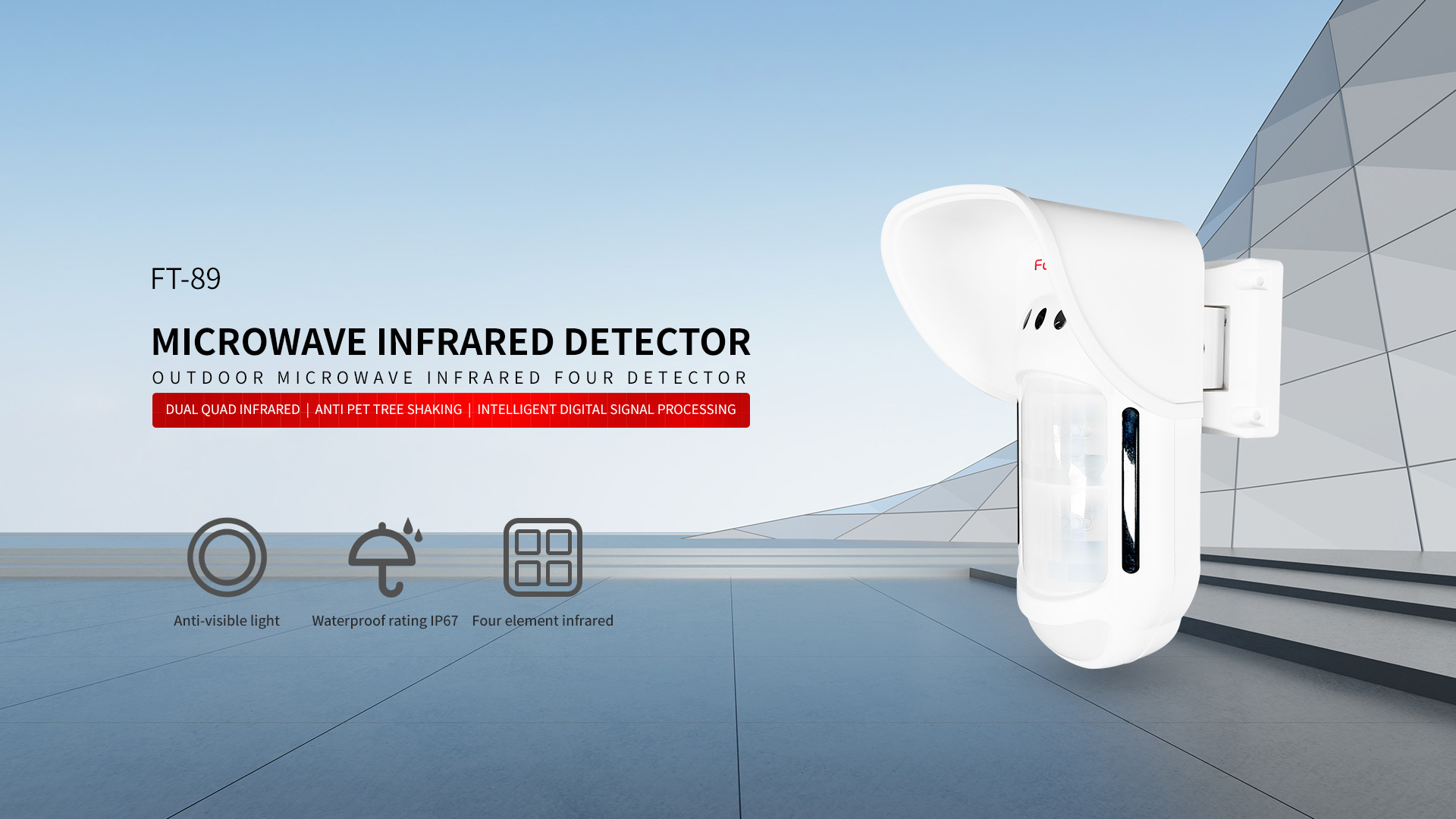

FT89 outdoor wired four detector infrared detector
Product features:

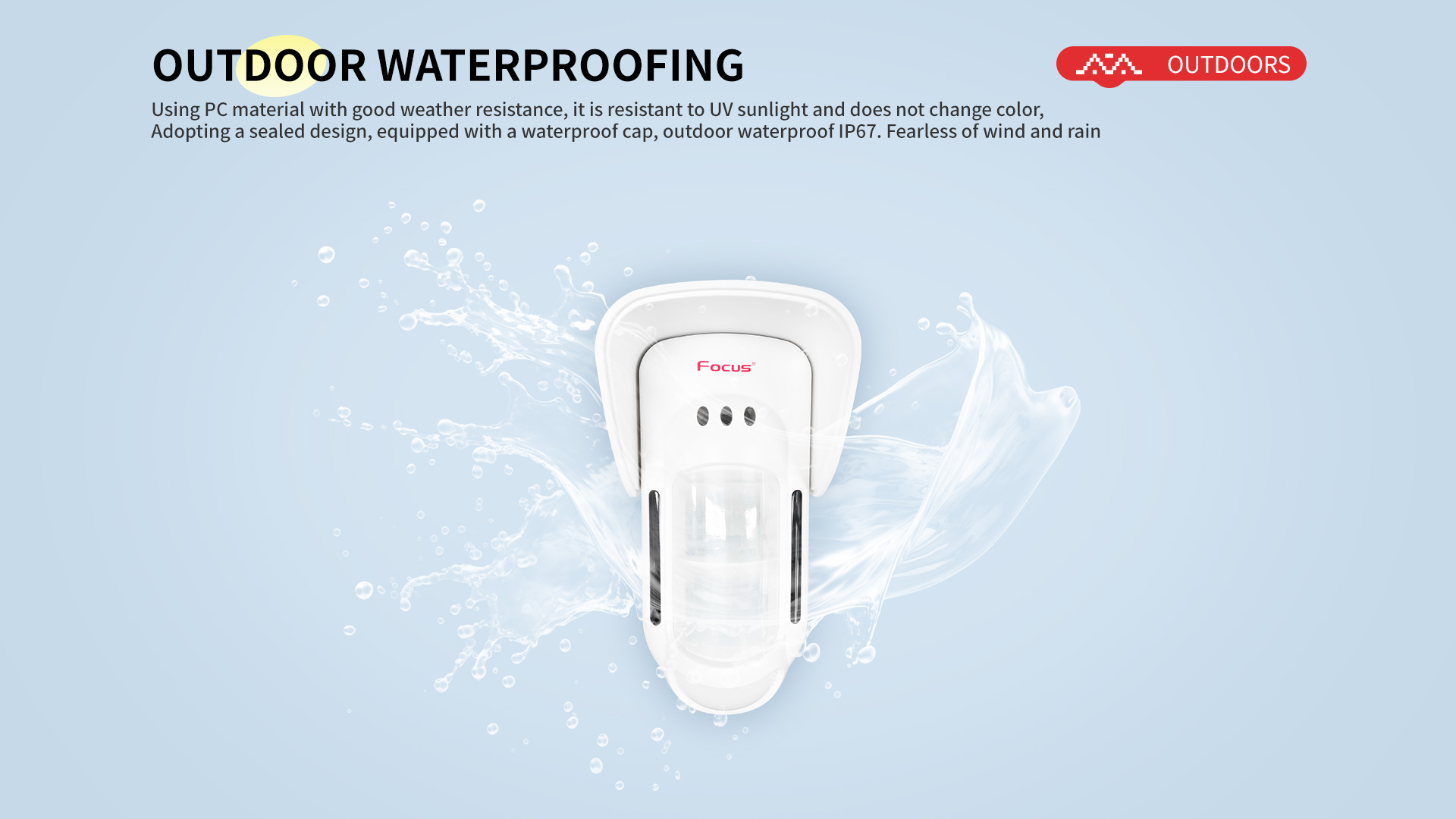

1. It can be used both indoors and outdoors, with a waterproof rating of IP67
2. Rain and fog resistant, white light resistant, environment adaptive

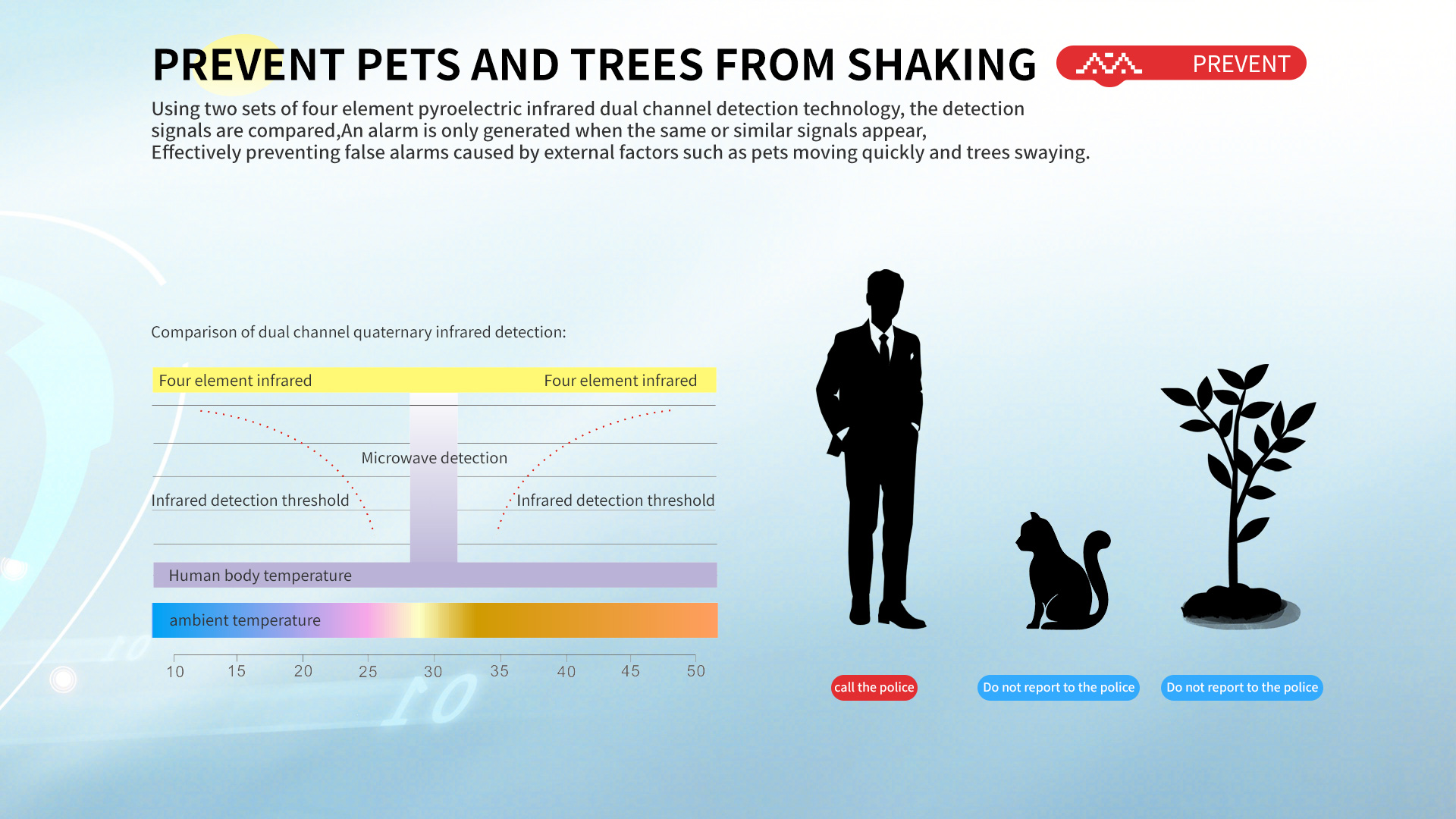

3. Intelligent algorithm for real object recognition, intelligent judgment, and anti pet recognition
4.2 Four element passive infrared digital interaction technology and microwave shake recognition technology;
5. Automatic pulse regulation to cope with various complex outdoor environments
6. Random dynamic time segmentation technology;
7. Large range rotation design, which can adjust the detection angle;
8. With a lower window, the detection range is wider, eliminating blind spots in detection;
9. Microwave anti-collision technology ensures that adjacent detectors do not interfere with each other;

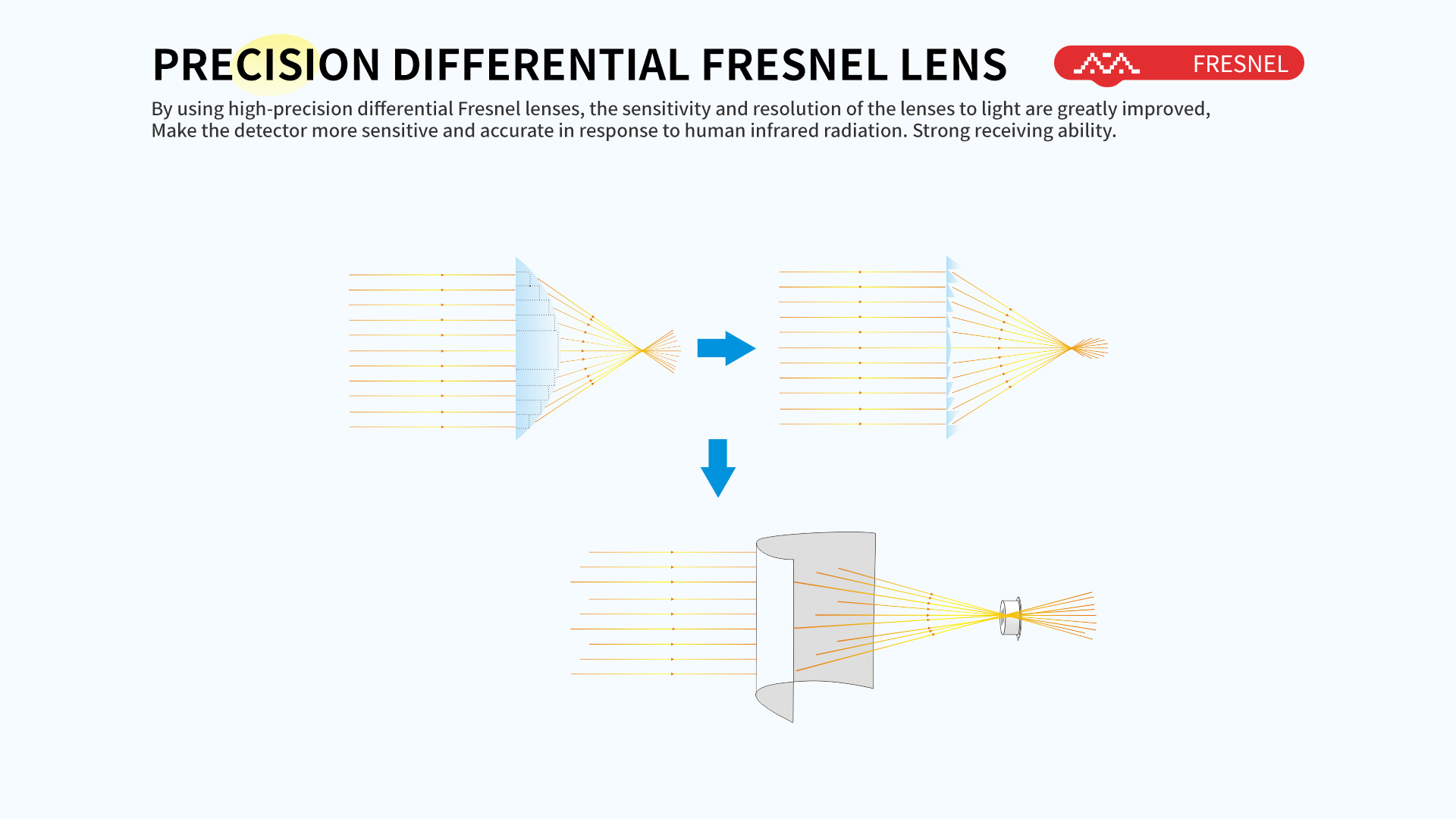

10. Spare Fresnel lens, selected according to detection requirements
Specification parameters:
Product model: F-89 indoor and outdoor triple detector

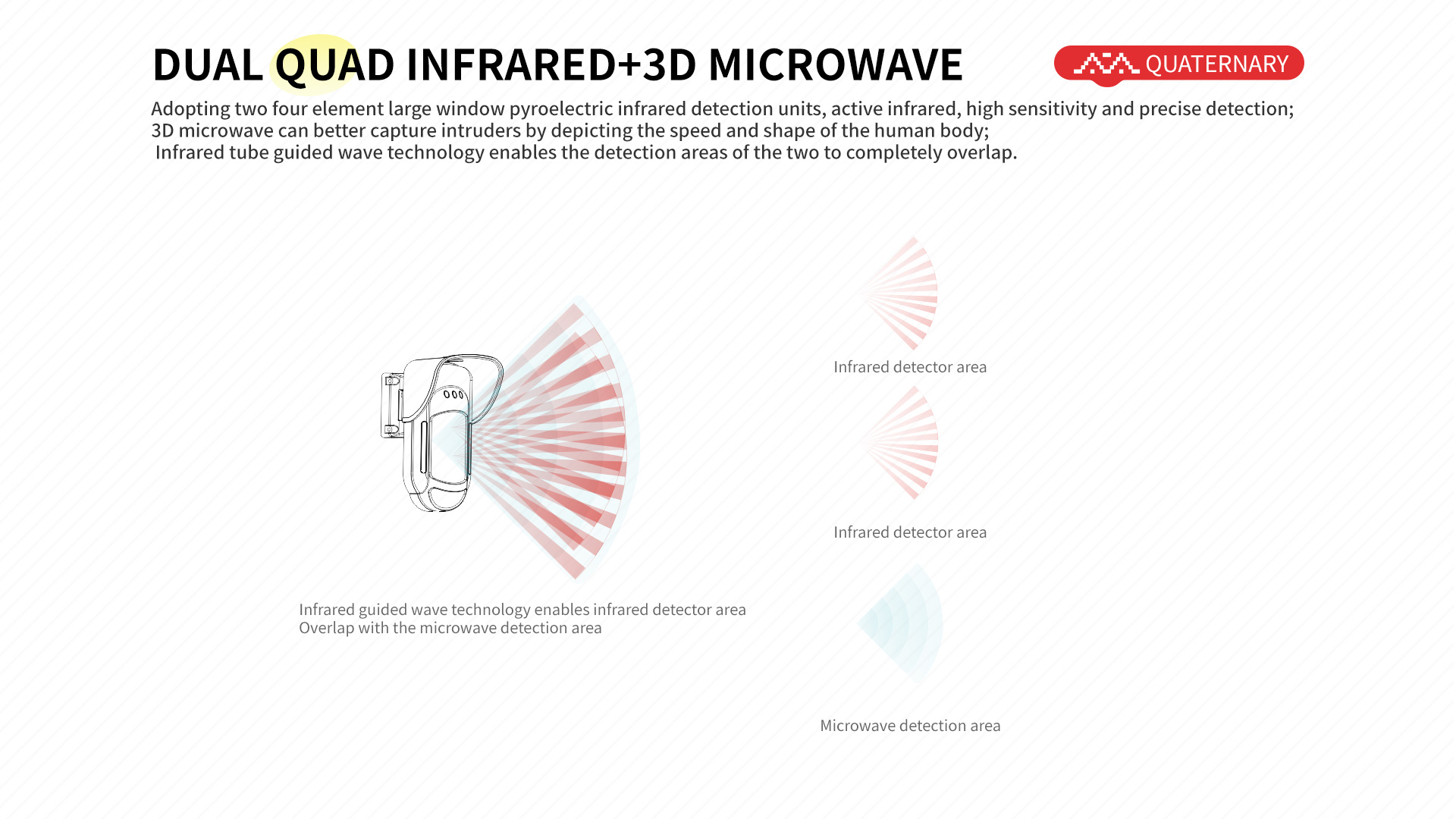

Detection method: Two sets of quaternary infrared+10.525GHz microwave
Static current: 18mA
Alarm current: 50mA
Detection distance: 9m/12m/18m
Detection angle: 30 °/90 °/120 °
Power input: 9-16VDC
Installation height: 1.8-2.4m
Alarm output: normally open NO normally closed NC optional

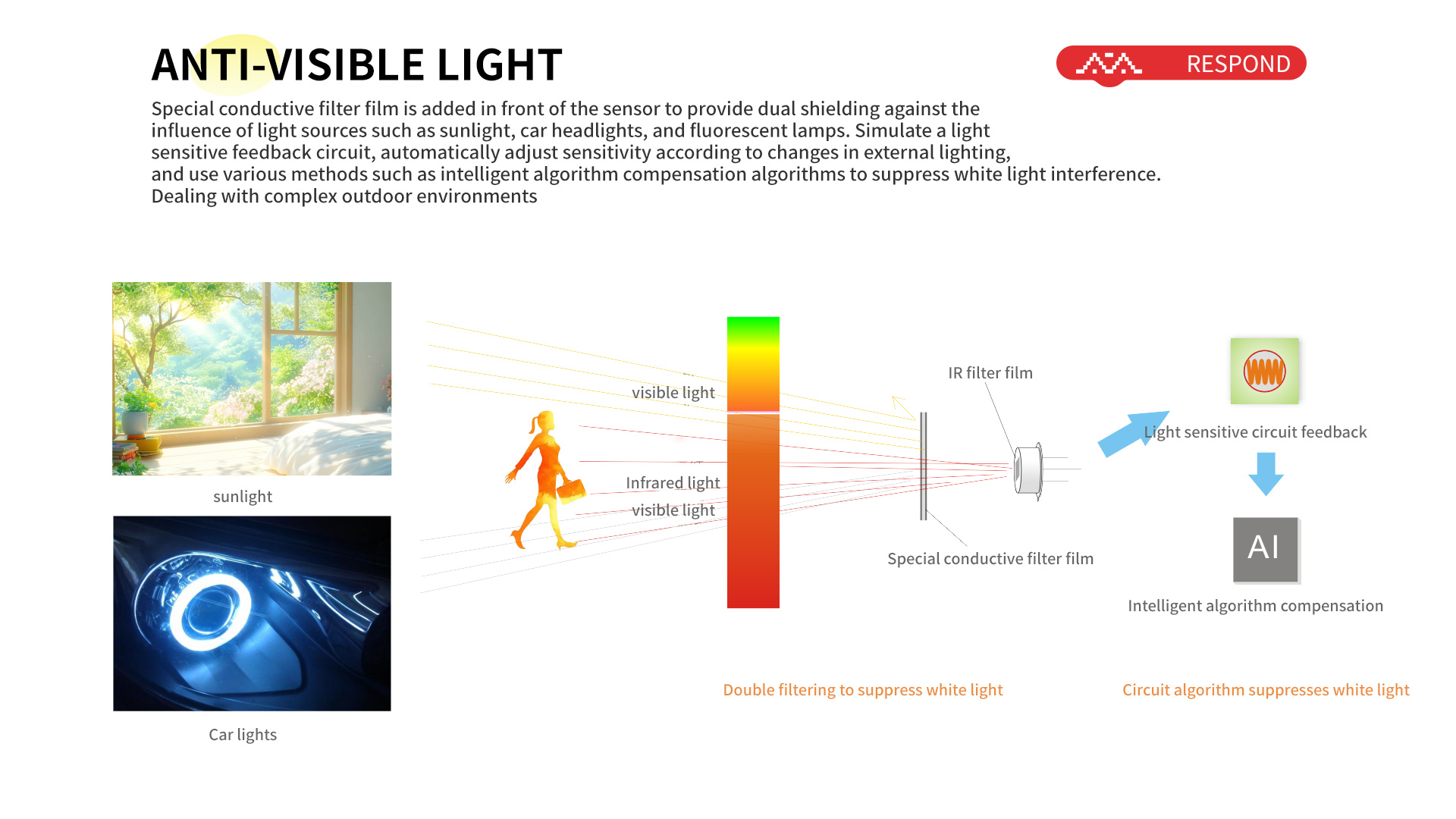

Anti white light interference: 30000LUX
Anti electromagnetic interference:>30V/m (30MHz~1GHz)
Working temperature: -20 ℃ -+55 ℃
Installation bracket: rotatable angle: horizontal 90 °, vertical 60 °
Size: (L * W * H) 309 * 113 * 187mm (including bracket)
