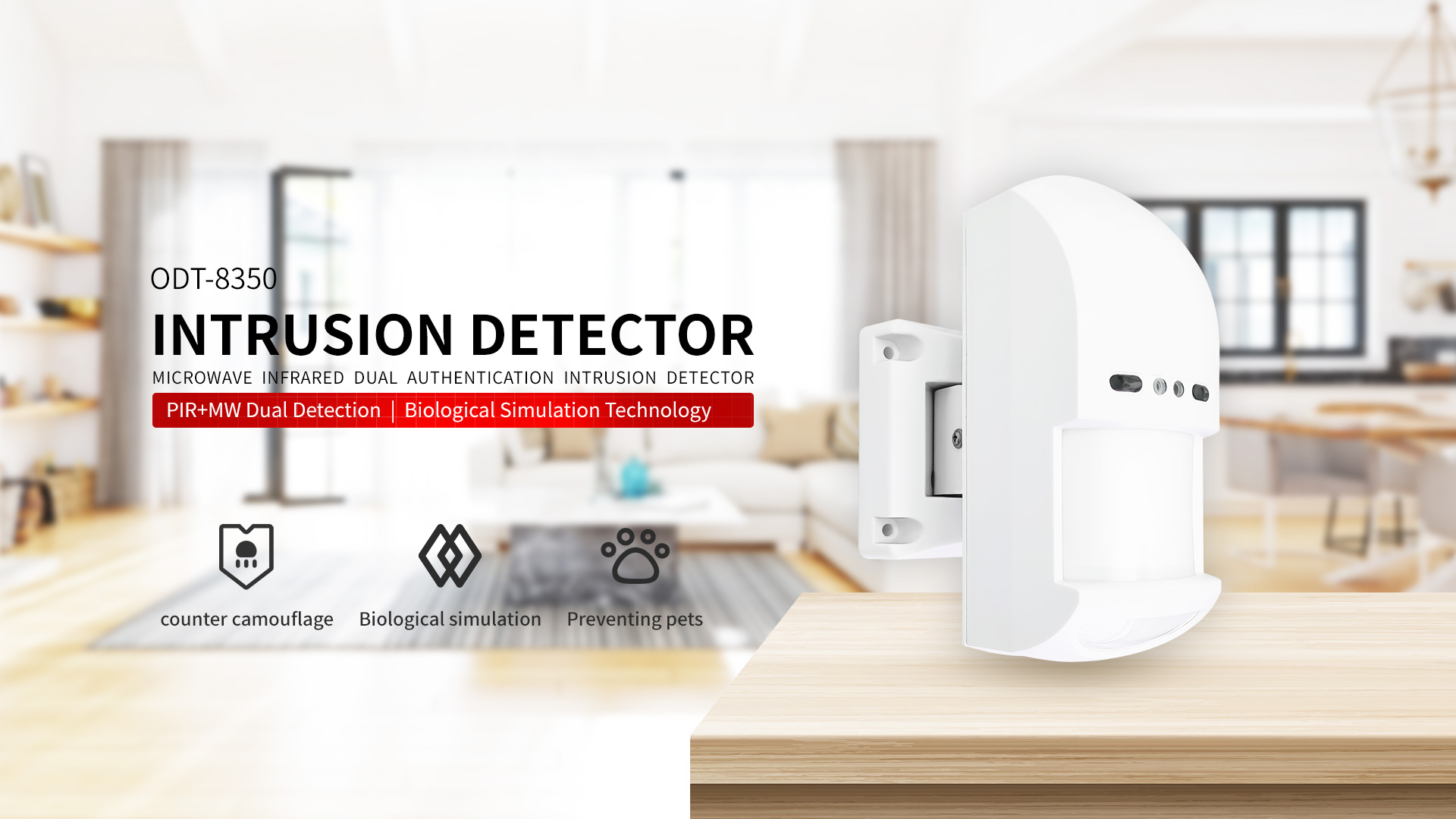

ODT8350 indoor and outdoor infrared detector
Product features:
1. It can be used both indoors and outdoors, with a sealed design and a waterproof rating of IP54
2. Rain and fog resistant, white light resistant, environment adaptive
3. Intelligent algorithm for real object recognition, intelligent judgment, and anti pet recognition

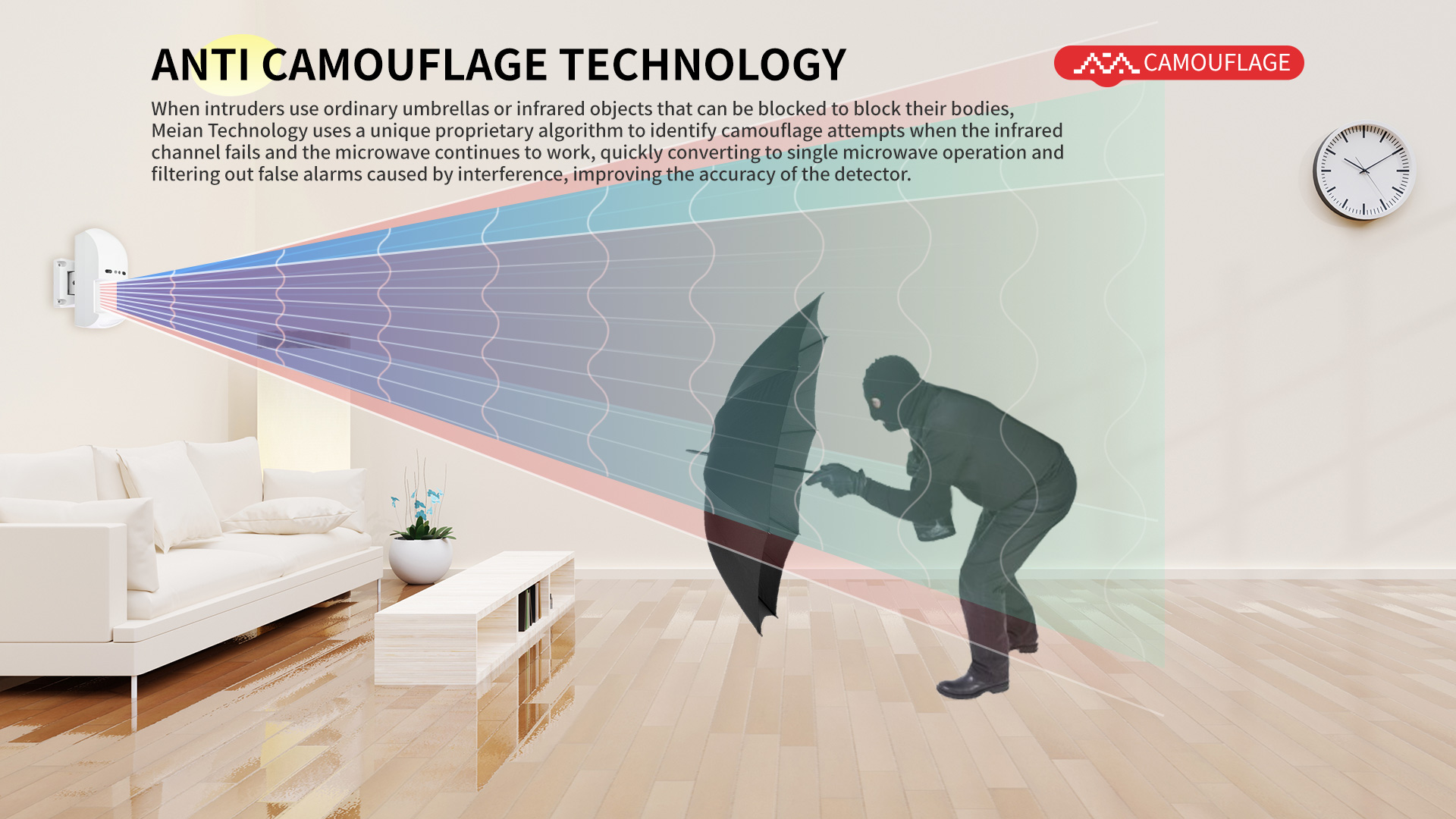

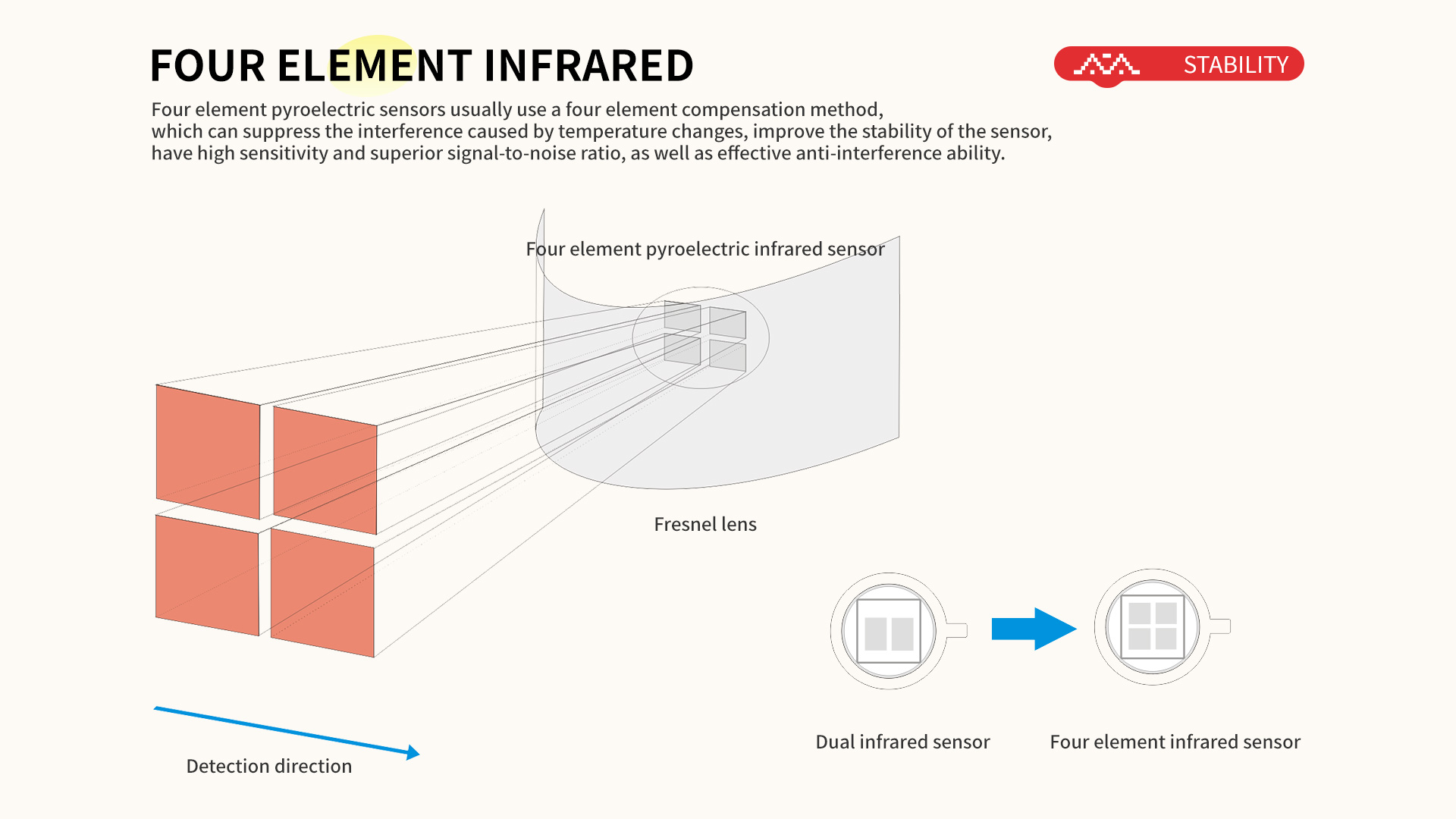

4.2 Four element passive infrared digital interaction technology and microwave shake recognition technology;
5. Automatic pulse regulation to cope with various complex outdoor environments
6. Microwave anti obstruction warning to improve the accuracy of detectors

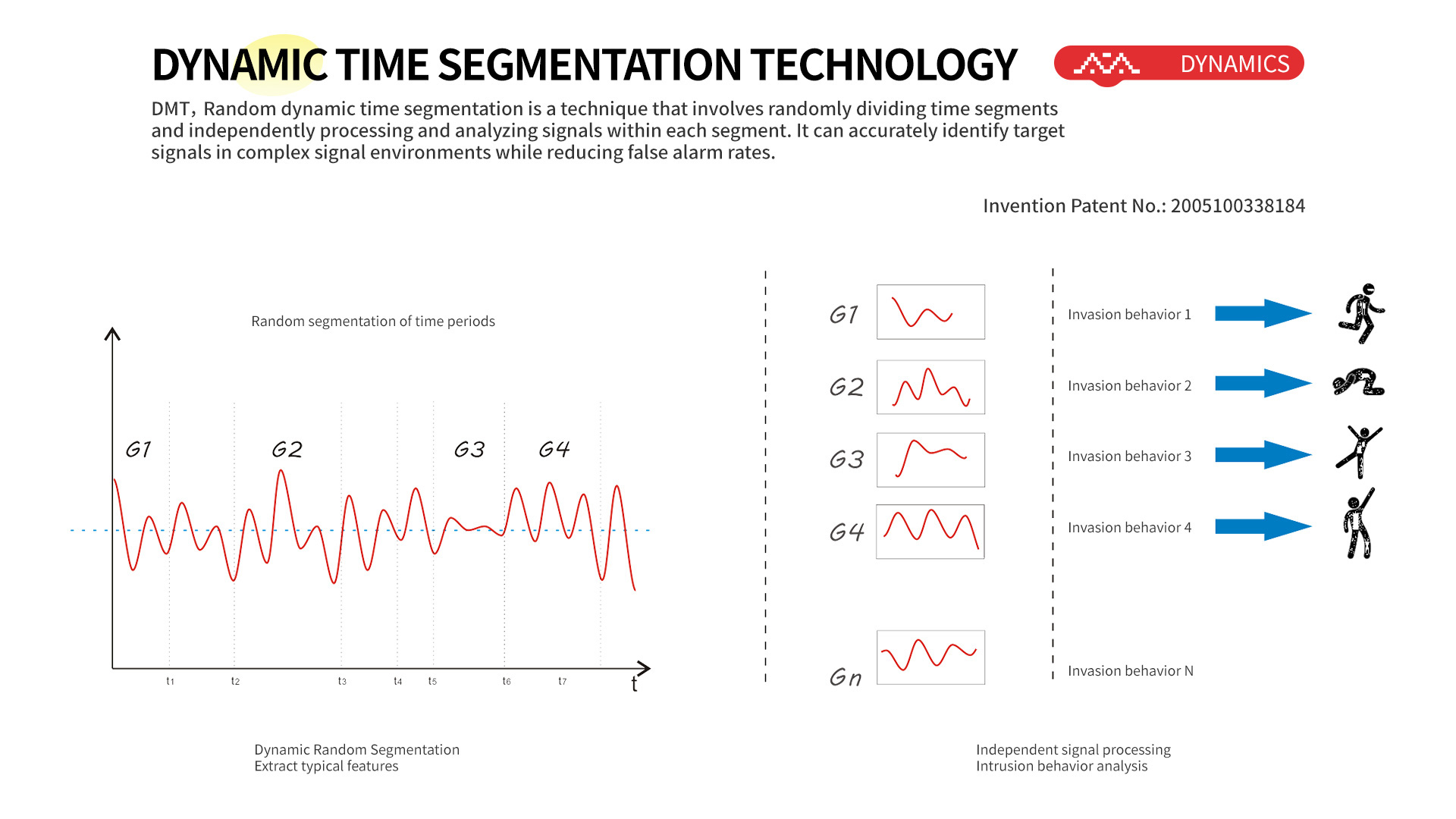

7. Random dynamic time segmentation technology; Improve the accuracy and detection speed of the detector.
8. Large range rotation design, which can adjust the detection angle;
9. With a lower window, the detection range is wider, eliminating blind spots in detection;

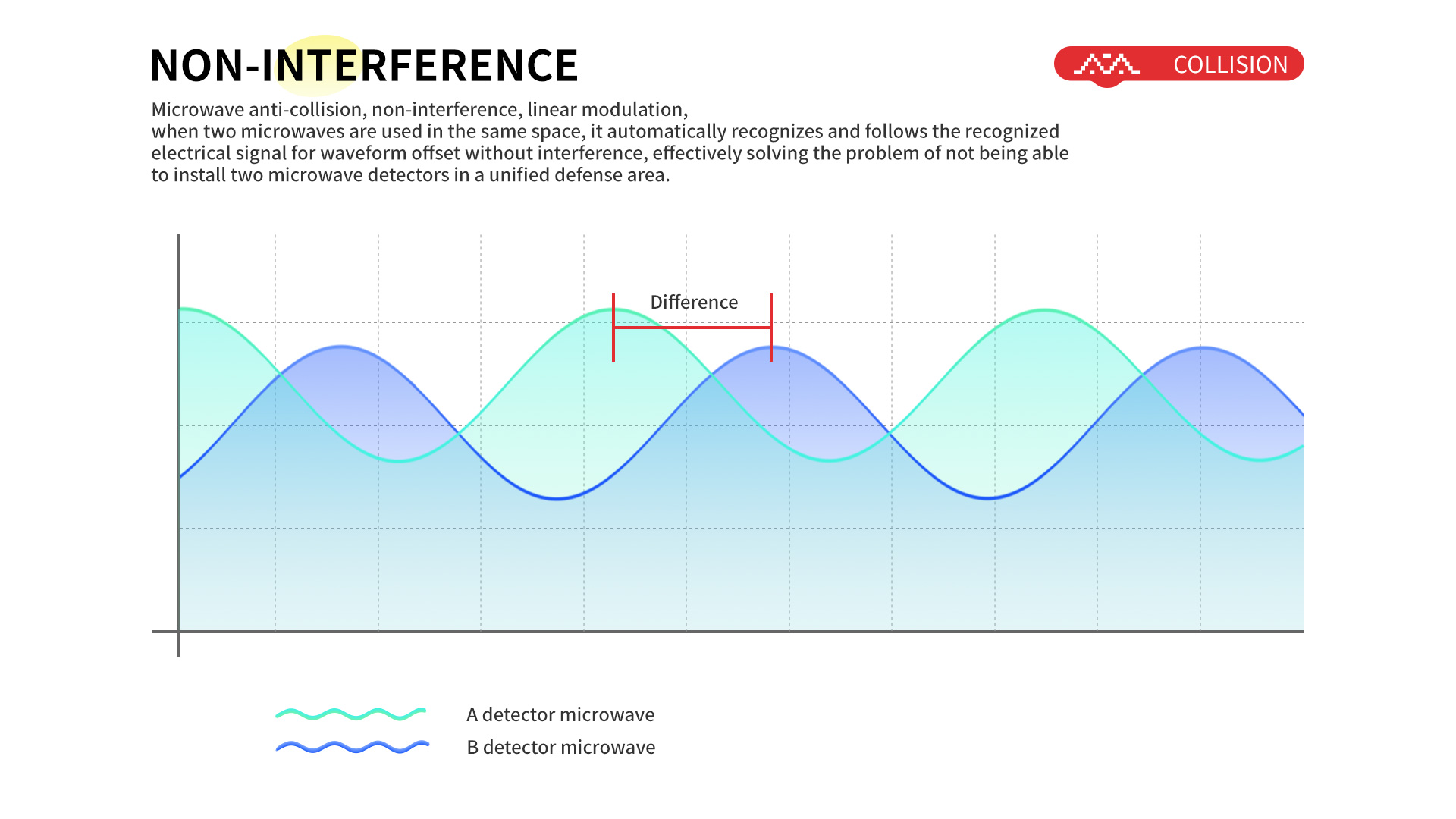

10. Microwave anti-collision technology ensures that adjacent detectors do not interfere with each other;
Specification parameters:
Product model: ODT-8350 indoor and outdoor triple detector
Detection method: Four element infrared+10.525GHz microwave
Static current: 19mA
Alarm current: 50mA
Detection distance: 11 meters
Detection angle: 110 ° 90 °
Power input: 9-16VDC
Installation height: 1.8-2.4m
Alarm output: normally open NO normally closed NC optional
Anti white light interference:>9000LUX
Anti electromagnetic interference:>30V/m (30MHz~1GHz)
Working temperature: -20 ℃ -+55 ℃
Installation bracket: rotatable angle: horizontal 90 °, vertical 60 °
