Product features:
1. It can be used both indoors and outdoors, with a sealed design and a waterproof rating of IP54;
2. Rain and fog resistant, white light resistant, environment adaptive;

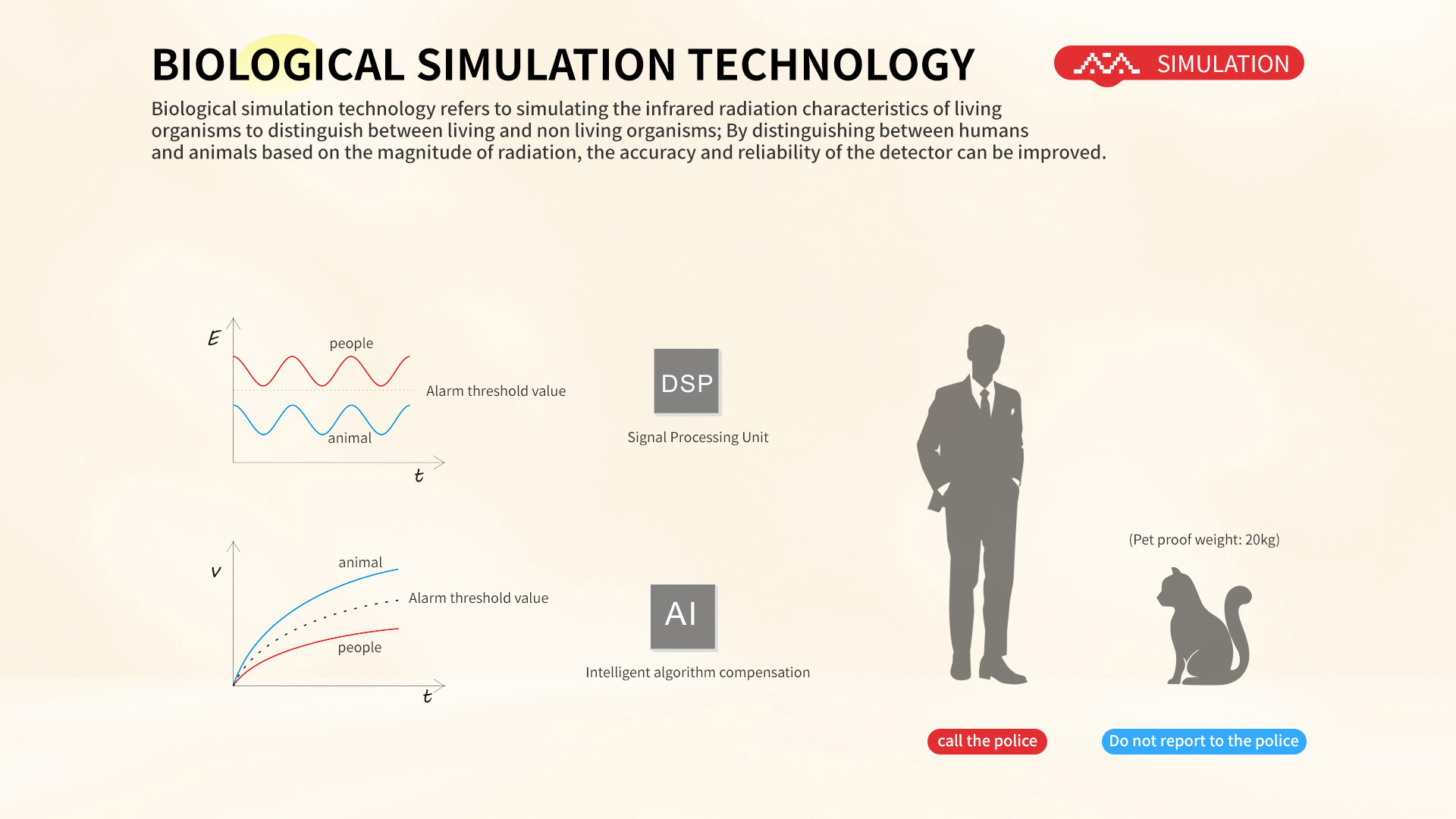

3. Intelligent algorithm for real object recognition, intelligent judgment, and anti pet recognition;

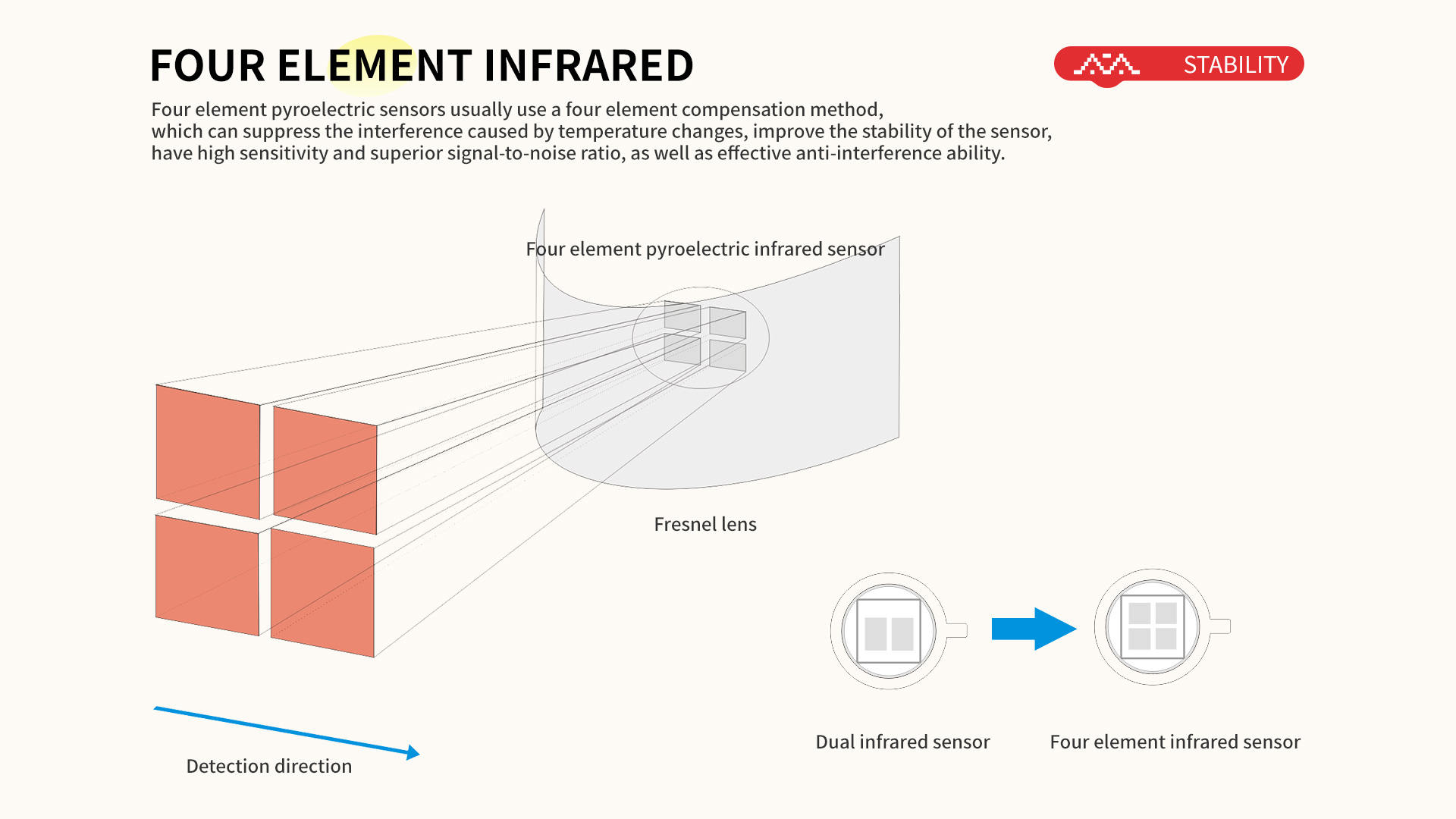

4.2 Four element passive infrared digital interaction technology and microwave shake recognition technology;

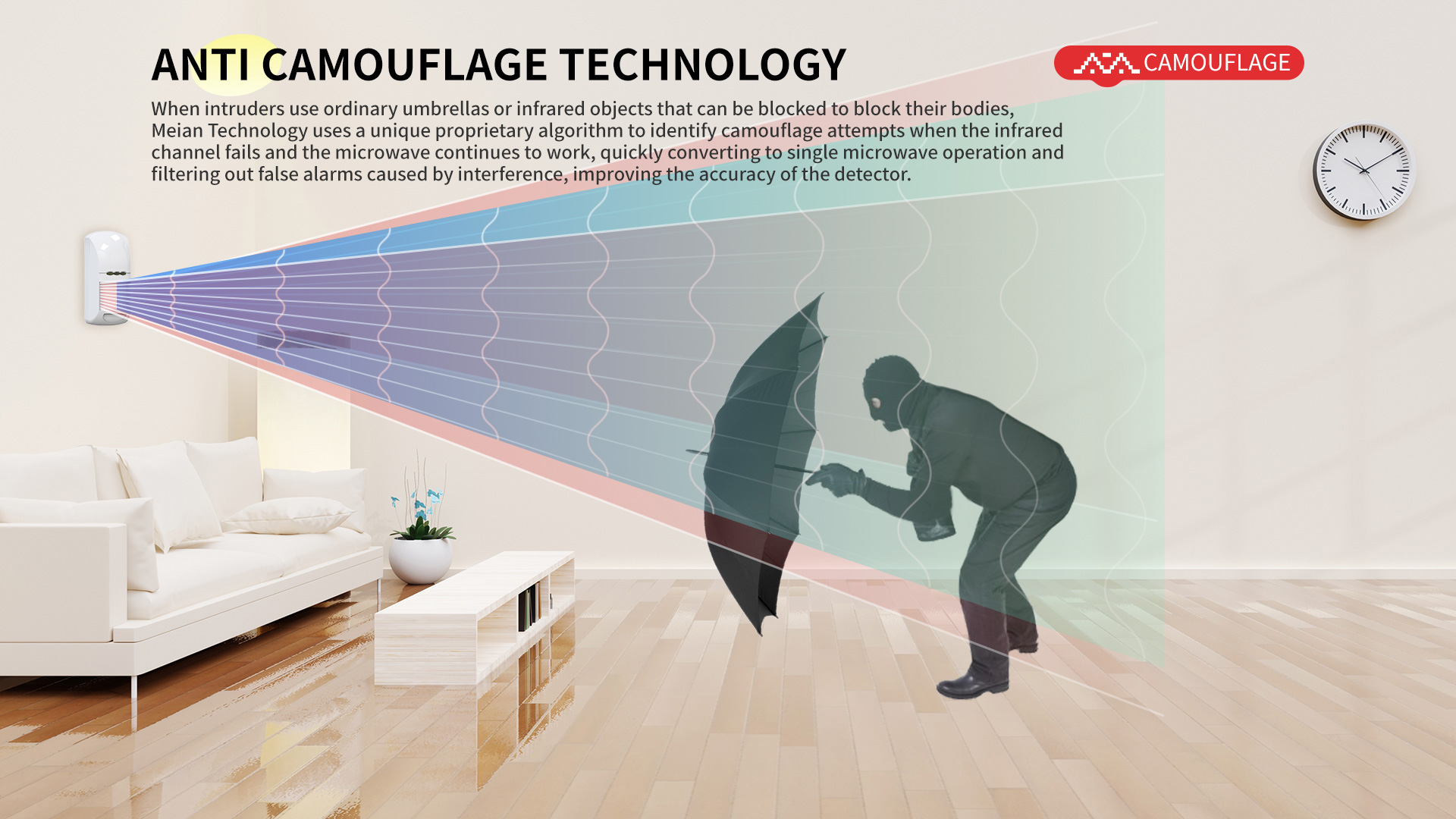

5. Automatic pulse regulation to cope with various complex outdoor environments;
6. Microwave anti obstruction warning to improve the accuracy of detectors;

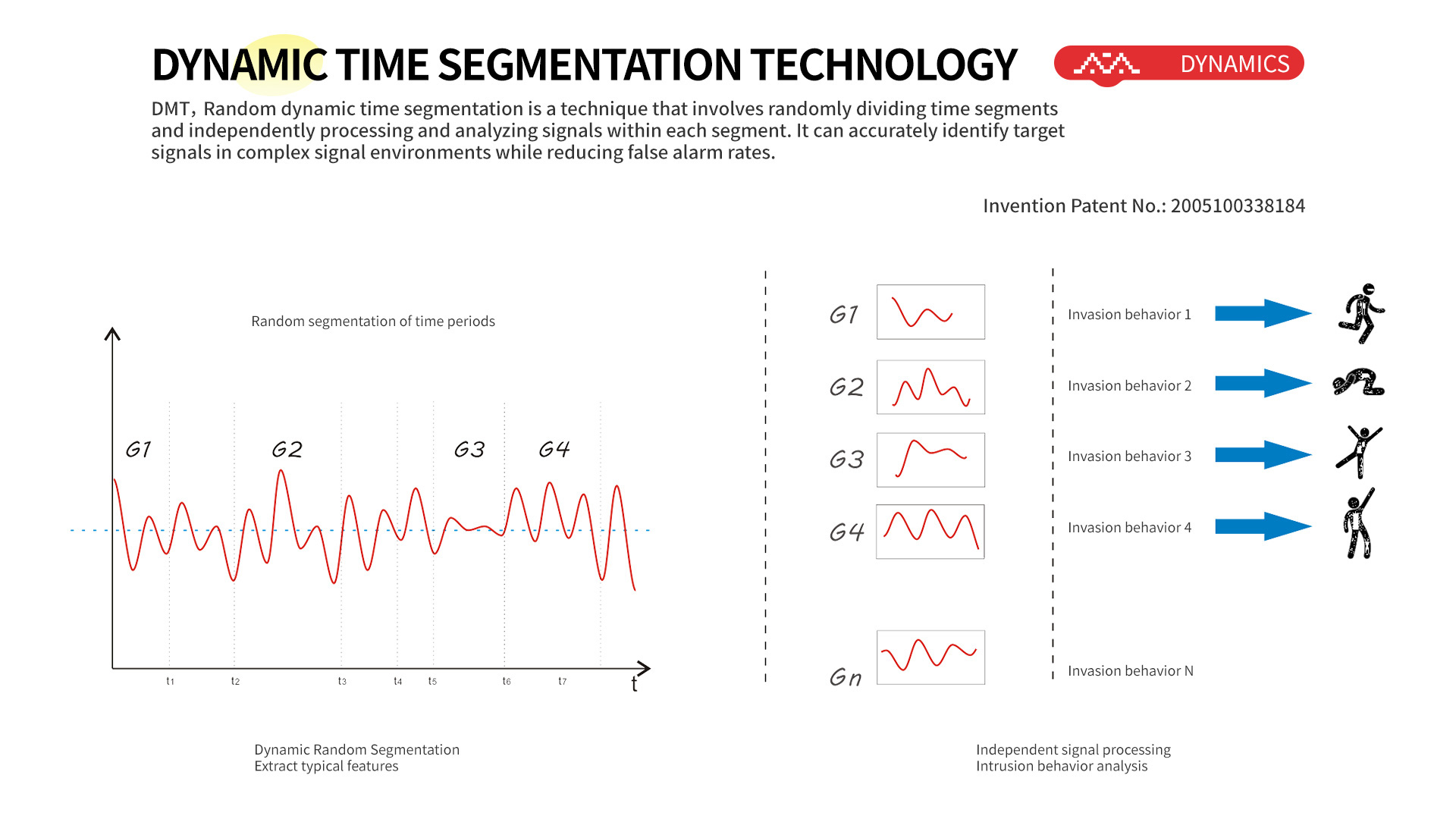

7. Random dynamic time segmentation technology; Improve the accuracy and detection speed of detectors;
8. Large range rotation design, which can adjust the detection angle;

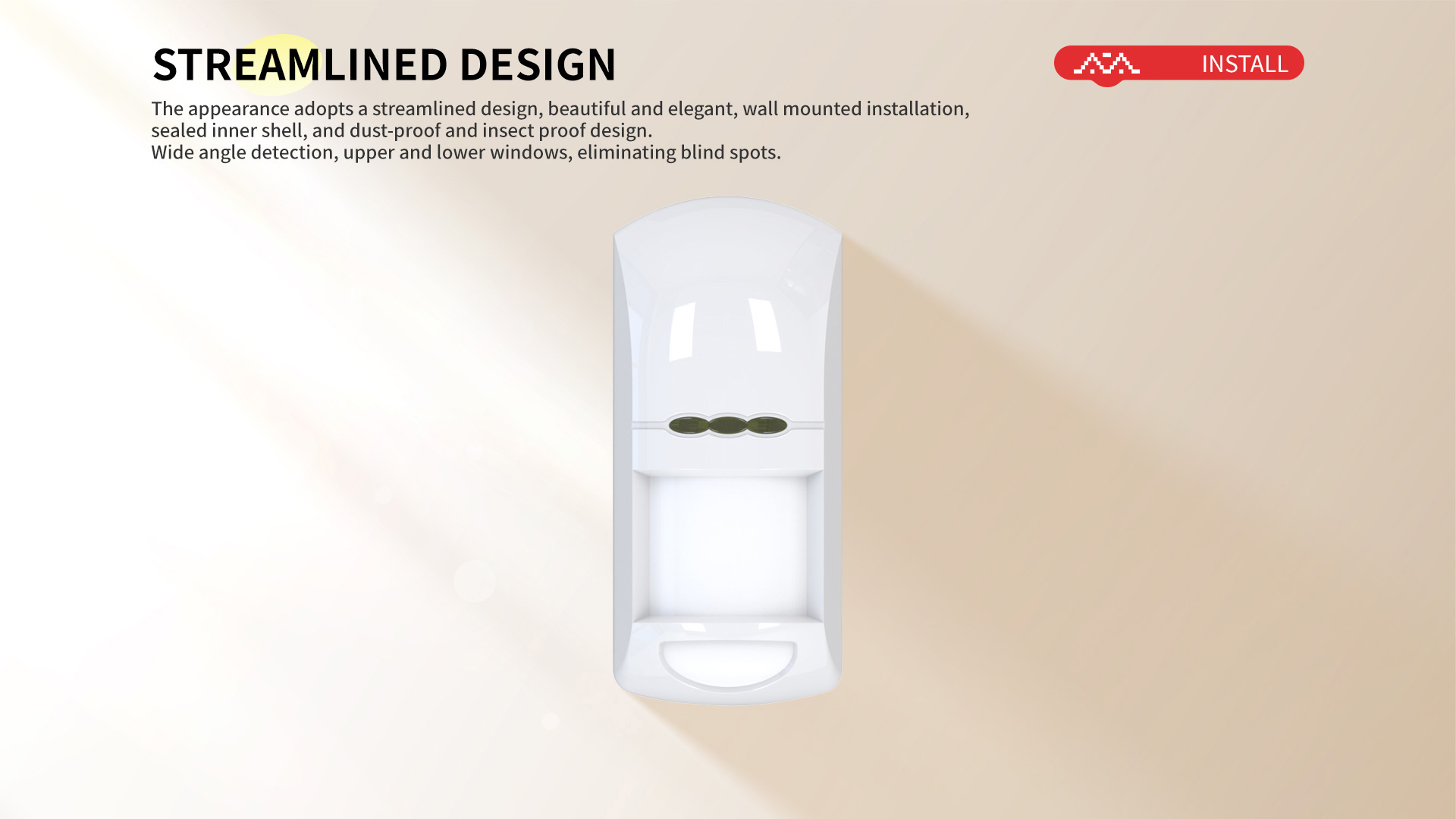

9. With a lower window, the detection range is wider, eliminating blind spots in detection;

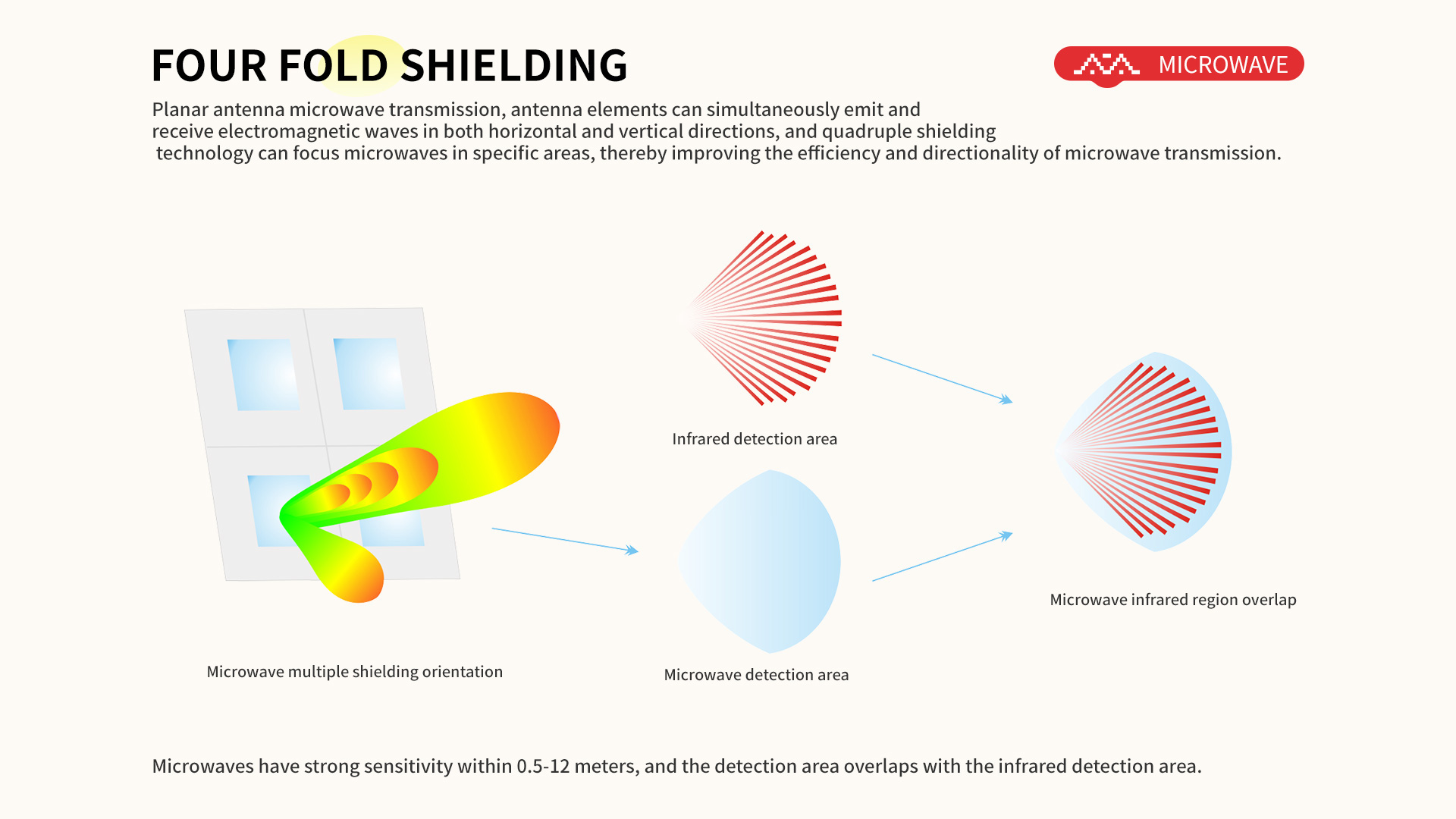

10. Microwave anti-collision technology ensures that adjacent detectors do not interfere with each other.
Specification parameters:

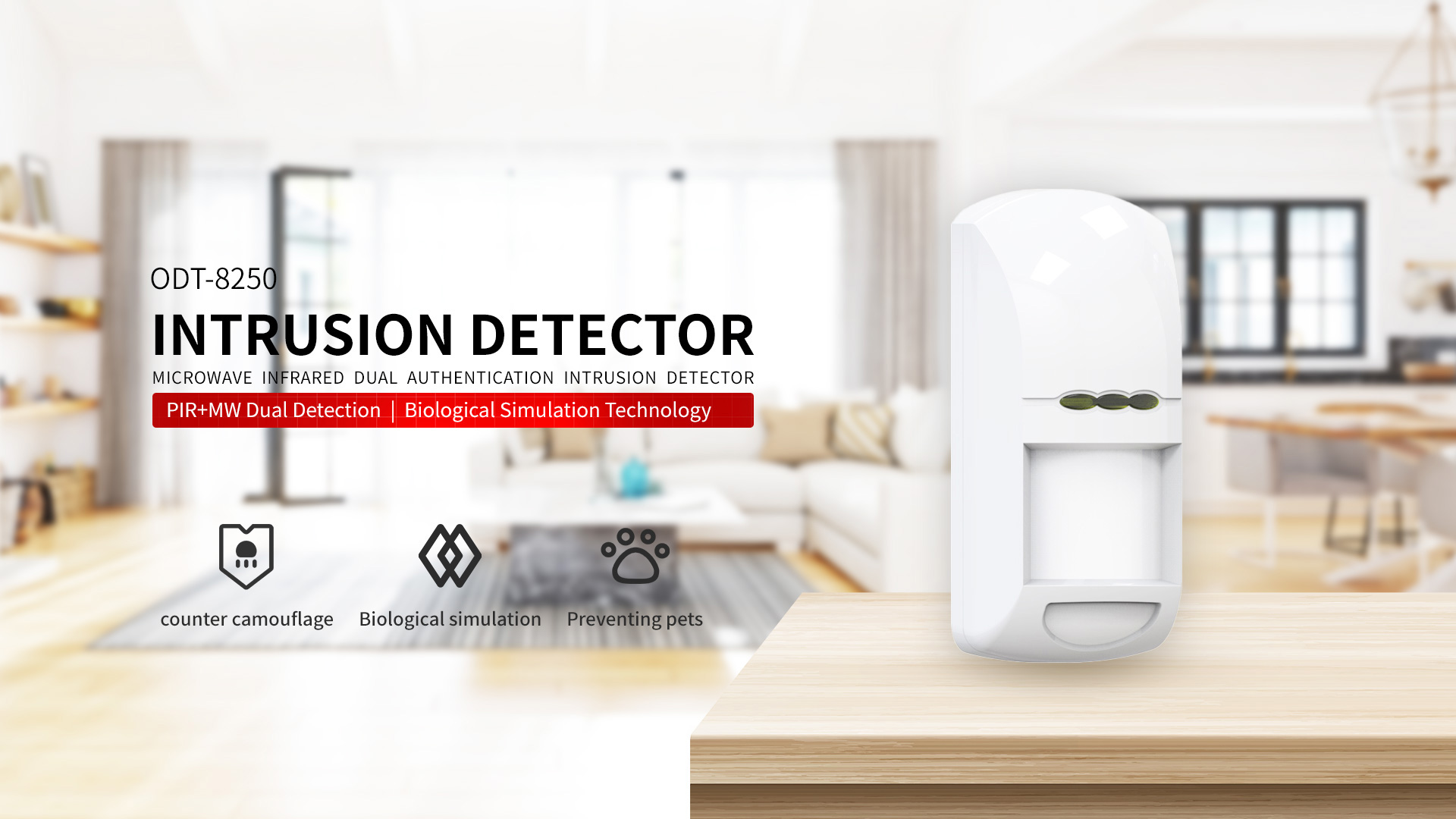

Product model: ODT-8250 indoor and outdoor three detector air outdoor detector
Detection method: Four element infrared+10.525GHz microwave
Static current: 19mA
Alarm current: 50mA
Detection distance: 11m
Detection angle: 110 ° 90 °
Power input: 9-16VDC
Installation height: 1.8-2.4m
Alarm output: normally open NO normally closed NC optional
Anti white light interference:>9000LUX
Anti electromagnetic interference:>30V/m (30MHz~1GHz)
Working temperature: -20 ℃ -+55 ℃
Installation bracket: rotatable angle: horizontal 90 °, vertical 60 °
